规格--750彩钢瓦成型机
|
序号 |
主要组件 |
规格 |
备注 |
|
1 |
轴 |
调质45钢 |
18道 |
|
2 |
辊轮 |
轴承钢 |
|
|
3 |
墙板 |
A3钢(18-20mm) |
|
|
4 |
传动 |
链条或齿轮箱 |
|
|
5 |

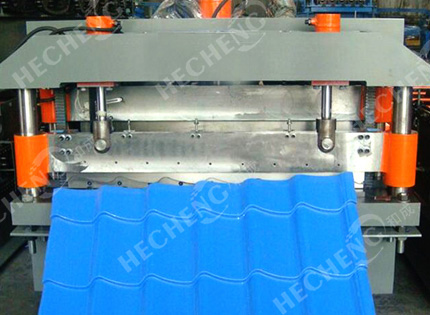

切断 |
液压剪切 |
|
|
6 |
电机功率 |
7.5KW |
|
|
7 |
控制系统 |
松下PLC，安川变频器 |
|

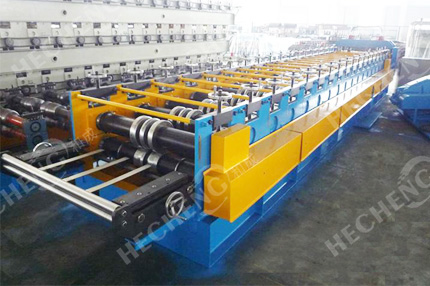

优势---750彩钢瓦成型机
• 高强度，经久耐用
此设备机架采用国标300/350工字钢，各组件、标准件一律采用国标产品，绝无空心轴等省料现象。设备运行稳定、操作简单，能充分保障您的生产进度。

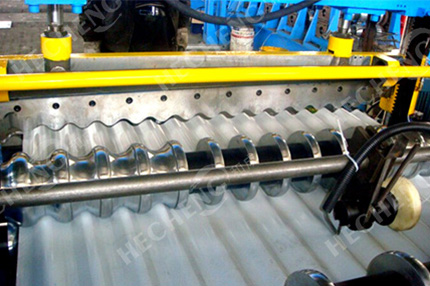

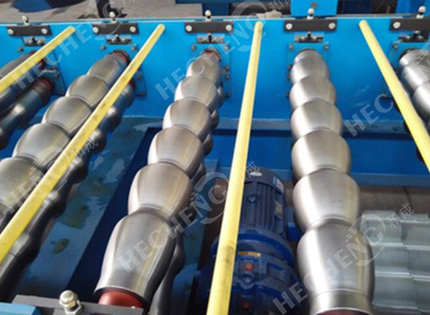

• 加工工序精细复杂
此设备压制辊轮经数控粗加工、淬火、二次精车、电镀等多步工序，精度高，跳动小，强度高，成型美观，无刮伤，无变形，充分保障您的产品质量。
• 交货快，售后积极
此设备交货期一般为30天，整机保修一年，终身维护。
Main technical specification
1. Coil width: 940mm
2. Material thickness: 0.45mm-0.5mm，G550
3. Forming speed: 0-15m/min
4. Roll station: upper 20 stations, down 18 stations
5. Main power:7.5kw
6. Hydraulic power:4 kw
7. Control system: PLC Panasonic
8. Drive: by chain
Specification of the material
1.Suitable Material: Colored Steel plate, Galvanized steel
2.Width of the raw material: 1250mm
3.Thickness: 0.3mm-0.8mm
This machine adopts electric pre-cutter: two pieces ( top layer and bottom layer) It is used when changing the coil of raw material; it can cut the coil rapidly and time-saving.

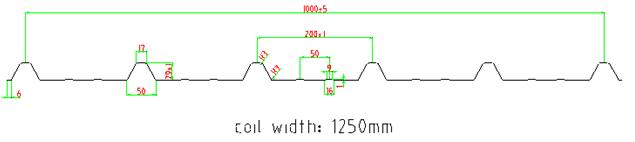

Profile drawing
The Chart of Process Flow
10T Hydraulic Uncoiler—Roll Forming—Track cutting—Auto stacker
Machine Detailed Parameters
|
1 |
Coil width |
1250mm |
|
2 |
Rolling Speed |
0-35m/min |
|
3 |
Rolling Thickness |
0.3-0.8mm |
|
4 |
Control System |
PLC (Panasonic) as list in the note |
|
5 |
Un Coiler |
5T hydraulic de-coiler |
|
6 |
Roller Stations |
20 stations |
|
7 |
Roller Material |
ASTM1045 chrome plated surface with chrome |
|
8 |
Shaft Material and DIA |
￠76mm material:45# with quenching and tempering |
|
9 |
Post track cutting |
The main machine won’t stop when cutting, 2.9kw servo motor |
|
10 |
Maim Motor Power |
15kw |
|
11 |
Hydraulic Station Power |
5.5kw with storage tank and air cooling system |
|
12 |
Hydraulic Pressure |
12-16Mpa adjustable |
|
13 |
Material Of Cutting |
CR12with heat treatment |
|
14 |
Structure Of The Stations |
Iron cast |
|
15 |
Tolerance |
3m+-1.5mm |
|
16 |
Electric Source |
380V, 50HZ,3 phase According to customer’s require |
|
17 |
Way Of Drive |
By gear box |
